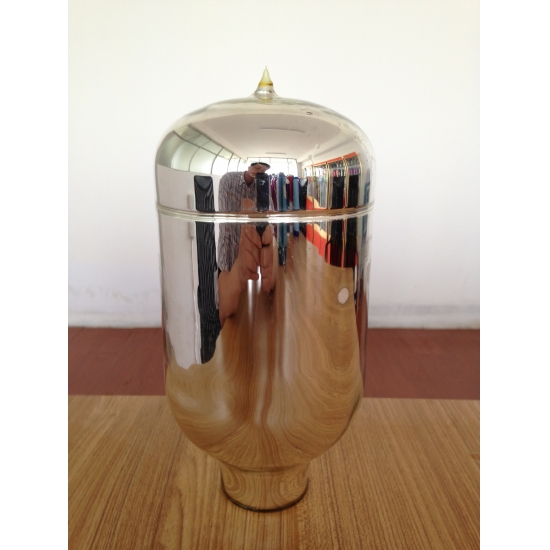

Center Pin Glass liner for Vacuum Flask(2500ML)
Post Time : 2013-04-25
- Y2545
- China
- 30-45 days
- m13773168175@163.com
Specifications:
Glass Refill with side pin or middle pin
Bottom sealing or waist welding
With three pads or without three pads
Materials:Outside Layer: glass
Inside Layer: glass
Middle: vacuum, silver coating
Capacity: 0.15 Liter - 3.2 Liter
It can keep hot & cold for a long time.
We can develop the moulds as per the requirements of customer.
Our main glass refill sizes are as below:
|
No. |
ART.NO |
capacity |
length |
diameter |
inner mouth |
outer mouth |
|
Liter |
±2mm |
±1mm |
±1.2mm |
±1.0mm |
||
|
1 |
Y1040 |
1.0 |
184 |
110 |
40 |
56 |
|
2 |
Y1340 |
1.3 |
213 |
117 |
40 |
56 |
|
3 |
Y1640 |
1.6 |
248 |
115 |
40 |
56 |
|
4 |
Y1940 |
1.9 |
250 |
120 |
40 |
56 |
|
5 |
Y0640 |
0.6 |
153 |
110 |
40 |
56 |
|
6 |
Y07538 |
0.75 |
232 |
87 |
38 |
49.5 |
|
7 |
Y2466 |
1.0 |
236 |
98 |
38 |
52 |
|
8 |
Y1055 |
1.0 |
134 |
136 |
55 |
70 |
|
9 |
Y1040-1 |
1.0 |
193 |
120 |
40 |
56 |
|
10 |
Y1838 |
1.8 |
268 |
117 |
38 |
50 |
|
11 |
Y5P |
2.0 |
325 |
115.6 |
38 |
52 |
|
12 |
Y611 |
2.6 |
272 |
142 |
44 |
58 |
|
13 |
Y8P |
3.2 |
342 |
143 |
40 |
54 |
|
14 |
Y2545 |
2.5 |
270 |
131 |
45 |
65 |
